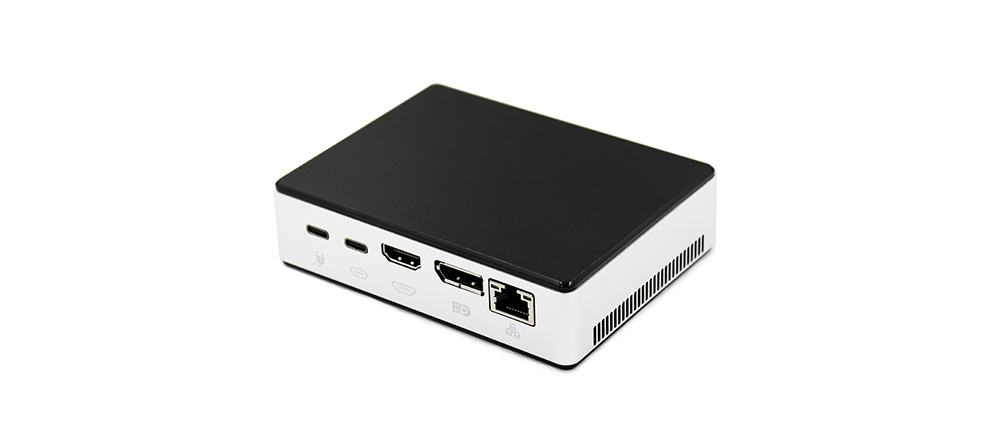

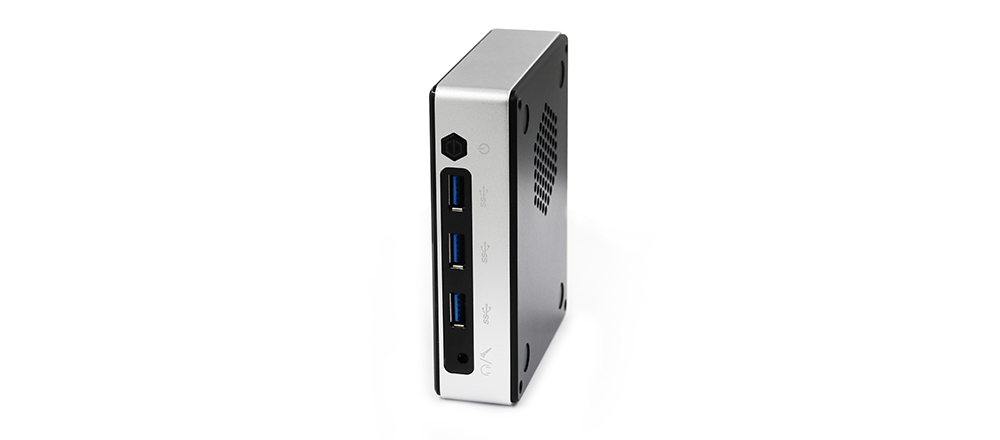

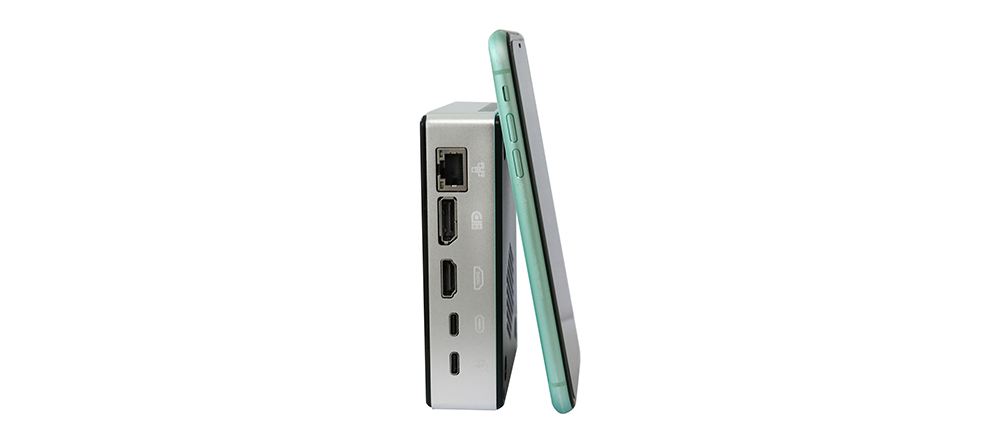

Meegopad-Windows Mini PC/MEEGOPAD C10(C10E)
Specification www.meegopad.cn
General
Style
OS  Windows10/11/linux
CPU/GPU
CPU/GPU Intel i5-1030NG7 / i7-1060NG7
CPU Frequency
Turbo Frequency
Core Quad Core
GPU Integrated Intel® HD Graphics Card
Storage
Ram LPDDR4 8GB onboard, 16G optional
Storage M.2 pcie NVME
Network Communication
WiFi M.2 slot
Wired Lan RTL8111H

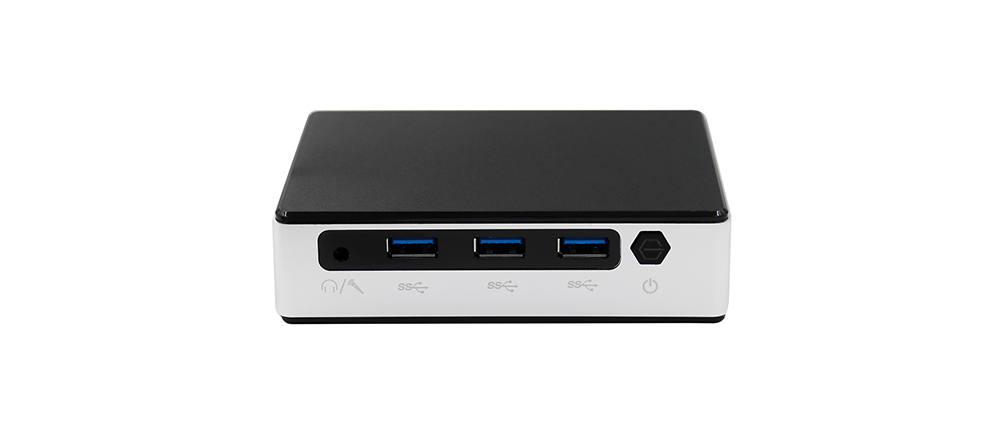

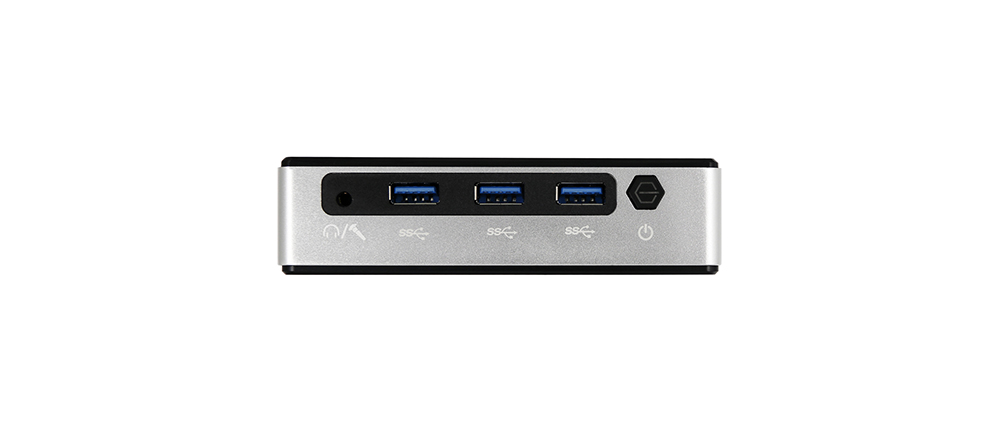

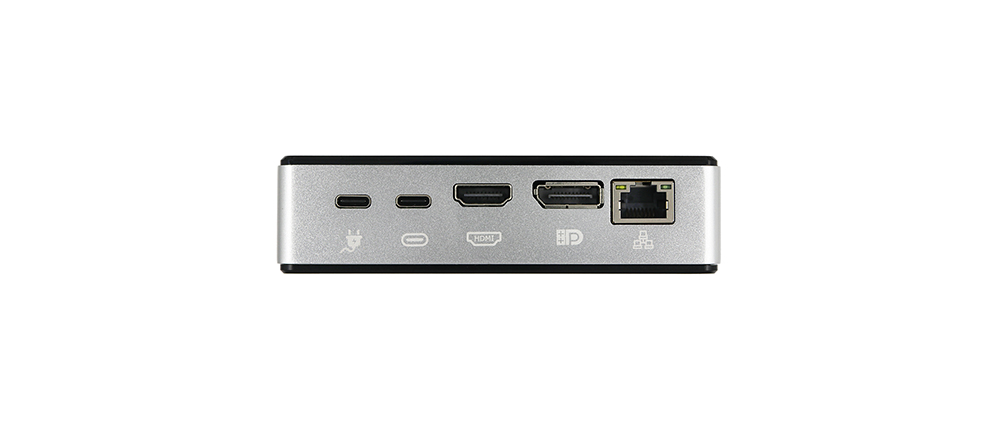

I/O Ports
HDMI 1*HDMI2.0*1
DP 1* DP port 4K
Type C 1* Type C supprot data and display
Data 3*USB3.0
LAN 1*Gigabit Lan
Audio 1*Mic & Audio 2 in 1
Power 1* USB C power 65W
Feature Key PC Power On/Off, Power indicator
Other function
Auto Boot Restore AC power loss support
Wake On Lan Support
Boot without hardisk RTC wake setting
Ontime boot/shutdown Support PXE boot
Power Adapter
Power 12~20V
Fan
Fan Intelligent Small Fan
Physical Characteristics
Dimension 117 x 90 x 30 mm
Weight 300g
Case Metal+ABS
Color

Silver+Black
