Meegopad-Windows Mini PC/MEEGOPAD C2F
Contact: Elaine  Email:elaine@meegopad.cn     Mobile:0086-15889685436     skype: lichen0000lichen1
Specification www.meegopad.cn
General
Style Industrial Mini PC
OS Windows10/11/Linux
CPU/GPU
CPU/GPU Intel®ElkhartLake J6412/J6413/J6426                        Intel® Alder Lake-N N95/N100/N200/N300
CPU Frequency 2.00 GHz (J6412)  1.80 GHz(J6413)
Turbo Frequency 2.00 GHz~2.6 GHz(J6412)  1.80 GHz~3.00 GHz(J6413)
Core Quad Core
GPU Intel® UHD Graphics for 10th Gen Intel® Processors
Storage
Ram DDR4 SODIMMx1,maixmum support 16GB;
Storage 1x M.2 2280NVME
1x 2.5inch HDD/SDD
1xMSATA
Expand Storage NO
Network Communication
WiFi Optional
Lan Realtek 8111H Gigabit,Support network wake
Bluetooth Support BT moudle(integrated with WiFi)
Sim Card Optional

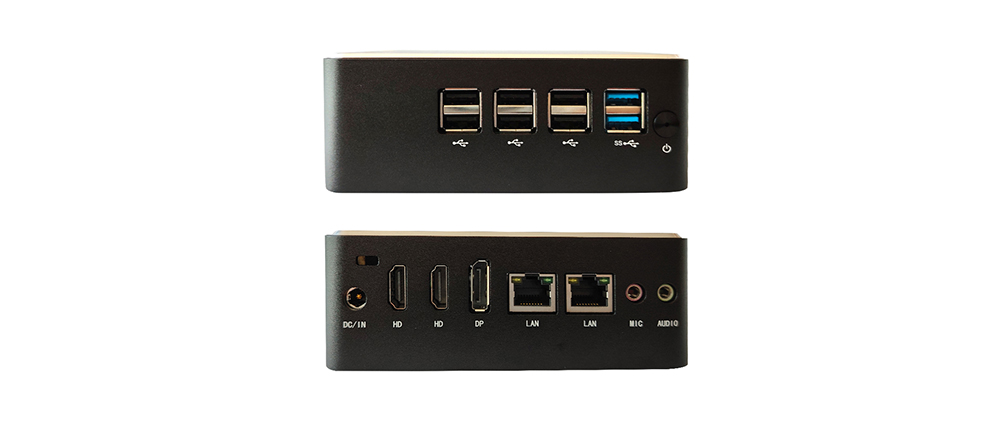

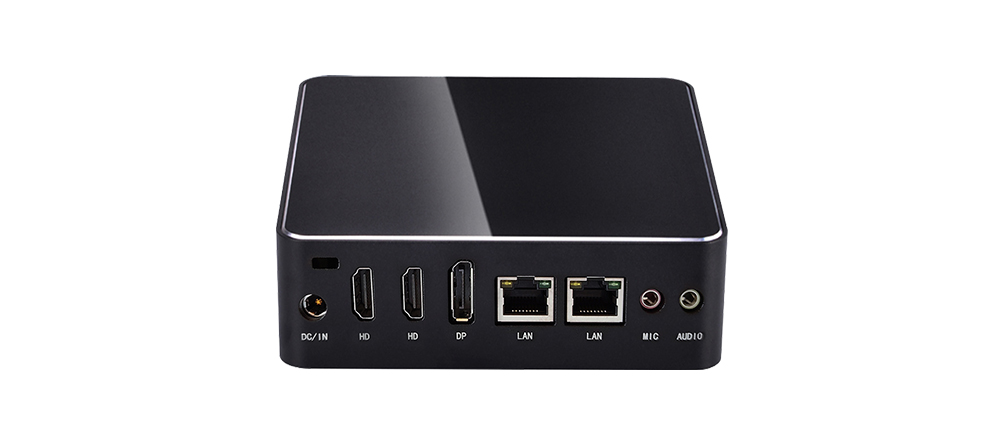

I/O Ports
RJ45 1x GbE RJ45 Realtek 8111H
HDMI HDMI *2 support 4K @60Hz
DP DP*1 support 4K @60Hz
DC DC port*1 12V
USB 6*USB2.0, 2*USB3.0
LED Power LED*1, HDD LED*1
Atenna port dual, for wifi/3G/4G
Feature Key Power On/Off
Power Adapter
Power Adapter Input 100V-240V 50/60Hz Output 12V 3A
Characteristics
fan Smart Fan
button One-key restore,diskless startup,watchdog
Install Way By vesa or desk
Other Function
Auto Boot Support
Wake On Lan Support
Diskless Boot Support
Resume by Alarm Support
Install Way By vesa or desk
Physical Characteristics
Working Tempeturate (-20)~60 (SSD/mSata), 0-50 (HDD)
Sotrage Tempeturate (-30)~70
Relative Hnmidity 10%~90%@30 Non-Condensing
Size 135*127*38.7MM
Weight 1KG
Material  Aluminum
Remark:                                                                                                                                                         Metal Housing, Suitable size for cooling
