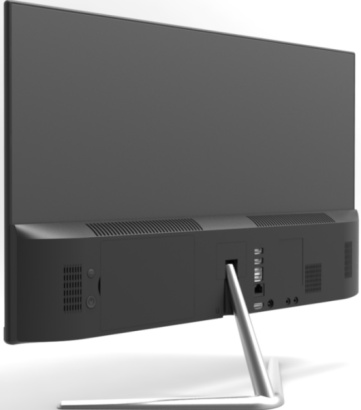

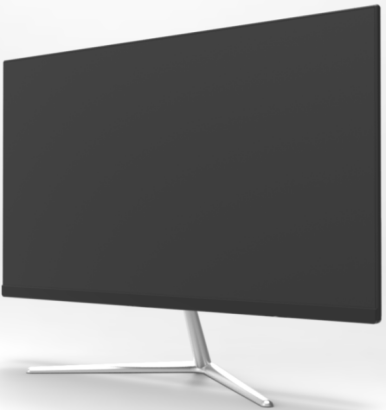

O2108N
If you want to know more about our product,please sent email to us.
| General | |
| Style | All In One PC |
| OS | |
| Display | |
| Size | 21.5" |
| Resolution | 1920*1080 |
| Interface | LVDS |
| Touch Screen | |
| Touch Screen | |
| CPU/GPU | |
| CPU/GPU | Intel Apollo lake N3350/N3450/N4200 CompatibleJ3355/J3455/J4205 |
| CPU Frequency | Basic :2.4（Dual core）/2.2（Quad core）/2.5GHz（Quad core） |
| Core | Dual Core/Quad Core |
| GPU | Intel® HD Graphics 500/505 |
| Multi-media (Hardware Decoding) | |
| Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MPEG2，VC1/WMV9，AVC/H264，VP8，JPEG/MJPEG，HEVC/H265 (8 bits)，HEVC/H265 (10bits)，VP9 |
| Audio Format | MP3, AAC, 3rd Party IP Algorithm, and so on |
| Storage | |
| Ram | 4GB/8GB LPDDR3 |
| Storage | 16/32/64/128GB eMMCSolid-state memory |
| Expand Storage | SD Card Reader |
| Msata SSD & Sata HDD | |
| Network Communication | |
| WiFi | WIFI 802.11b/g/n&ac/a/b/g/n +BT 4.0 2.4G/5.0G dual channels |
| Bluetooth | Optional |
| RJ45 | 1000M; |
| I/O Ports | |
| Audio port | *1；∮ 3.5mm standard headphone jack |
| USB | USB A*3（HOST），USB2.0 |
| USB A*2（HOST），USB3.0 | |
| Display Output | *1； Standard HDMI |
| DC Jack | *1；Yes，∮ 5.5MM power connector |
| RJ45 | *1；1000M |
| HDD/SSD | *1； |
| Webcam | |
| Webcam | Built in optional |
| Speaker/Microphone | |
| Speaker | 4Ω/3W * 2 |
| Microphone | Yes |
| Hall Switch | Yes |
| Battery | |
| Battery | N/A |
| Power Adapter | |
| Power Adapter | DC∮5.5mm 12V/3A or 19V/2A |
| Physical Characteristics | |
| Material | Plastic +Metal |
| Dimension | 493*289*33mm（Excluding stents） |
| Weight | 2.6KG（Excluding adapter） |
