D116E
If you want to know more about our product,please sent email to us.
| General | |

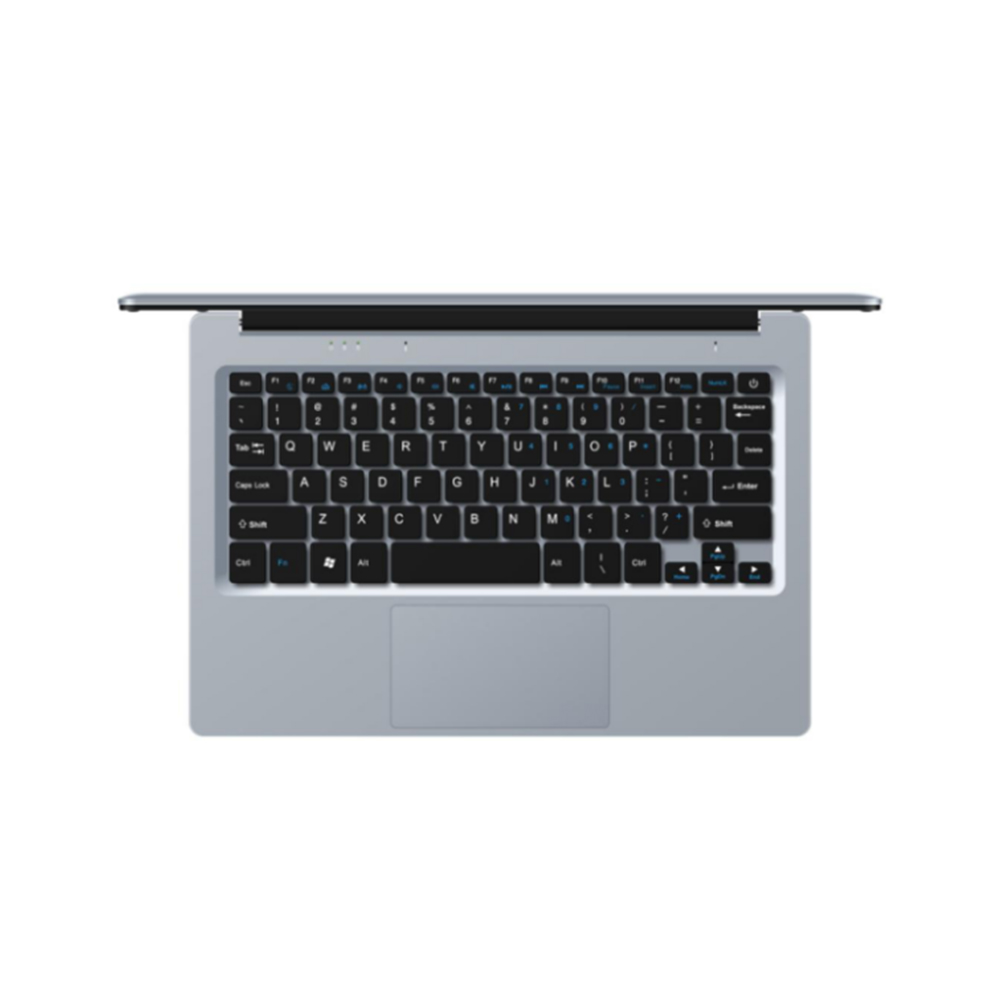

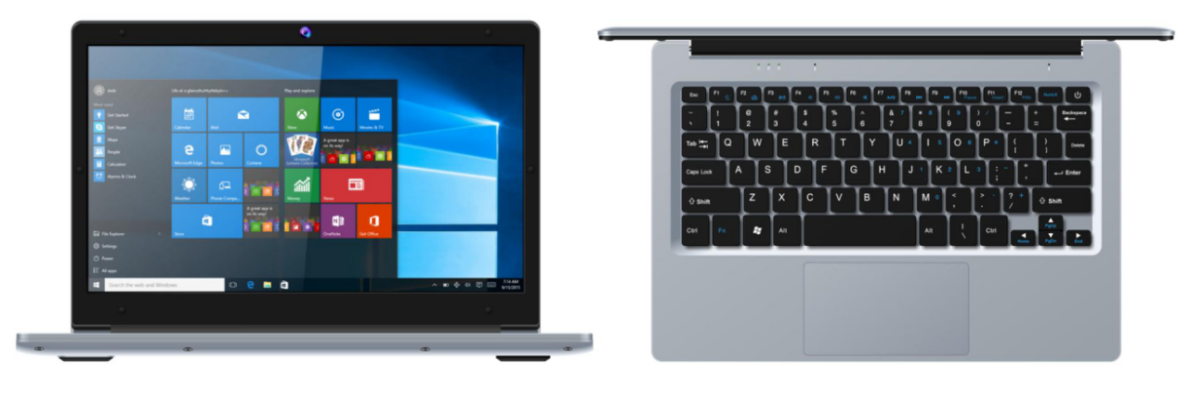

| Style | 11.6inch laptop style, support all phones & HDMI devices |
| Main Function | |
| 1. Connect USB C 3.1 mobile phone through USB C and make mobile phone a PC. | |
| 2. Connect Mini PC/Stick PC/Develop Board to HDMI port&USB port, make it a compelete PC. | |
| 3. Connect Macbook from USB C port to make 10 a second display. | |
| 4. MeeGo Dock D116E can be used as power bank to charge mobile phone. | |
| 5. Expand mobile phone storage on laptop Micro SD Card Slot, support Max 256GB. | |
| 6. Support adjust brightness, volume level, Audio/Vido play/suspend/back/forward, charing, full charged, etc same as notebook. | |
| Screen | |
| Touch | Non-Touch |
| Display | 11.6 inch 1366*768 (1920*1080 optional) |
| Keyboard | |
| Keyboard | full size, backlight optional |
| Wireless | |
| WIFi | Miracast optional |
| Touch Pad | |
| Touch Pad | Mouse track |
| Battery | |
| 7.6V 6300MAH | 4pcs 3.7V 2500MAH cell, or 2PCS 3.7V 5000MAH Cell |
| Spearker | |
| Spearker | Built-in stereo speakers 8Ω |
| Mic | |
| Mic | Built in |
| I/0 | |
| DC*1 POWER | DC 12V 3A |
| USB C*1 | Power& Data &Video and Audio input for mobile phone/stick pc/mini pc/development board |
| USB2.0 A*1 | Data transfer, Maximum power output up to 5V/500mAh |
| Audio Jack*1 | 3.5mm stereo mini jack |
| Micro SD Cardreader*1 | Support up to 256GB |
| Device supporting | |
| Samsung S8/S8+/s9/S9+and above | Supporting DEX desktop function |
| Huawei MATE10/Mate20/P20& above | Supporting desktop function |
| MACBOOK | Supporting all models with Type C |
| Supporting all devices with USb3.1 type C port or HDMI port (NOTEBOOK,TABLET， MINI PC,MOBILE PHONE, ALL IN ONE, DEVELOPMENT BOARD） | |
| Power Spec | |
| Power Adapter | DC 12V 3A |
| Phisical Spec | |
| Dimension | 277.0*188.6*17.2mm |
| Weight | 0.95KG |
| Material | Plastic |
| Color | Black,Gary,Siliver,Gold |
| Working Tempeturate | 0-40°C |
| Storage Tempeturate | ~(-20)~70°C |
| Package | |
| Package | 1*D116D, 1* Gift Box, 1*power adapter with cable, 1*USB C 3.1 cable |
