General | |

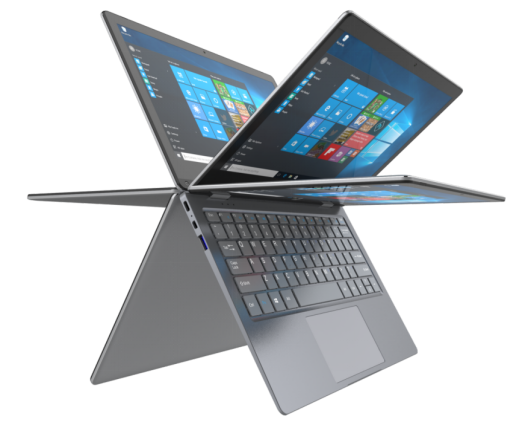

Style | 13.3inch laptop style 360degree turn over case with touch screen for USB-C mobile phone&HDMI Device |
Main Function | |
1. Connect mobile phone usb c3.1 port through USB C and make mobile phone a PC | |
2. Connect Mini PC/Stick PC/Develop Board to HDMI port and make it a compelete PC | |
3. Connect Macbook from USB C port to make 10 a second display | |
4. WIreless connection for type c phone is optional. | |
5. MeeGo Dock V10B can use as power bank to charge mobile phone. | |
6. Expand mobile phone storage on laptop Micro SD Card Slot, support Max 256GB | |
7. Support adjust brightness, volume level, Audio/Vido play/suspend/back/forward, charing, full charged, etc same as notebook. | |
Screen | |
Touch Screen | Support Multi-touch |
Display | 13.3 inch 1920*1080 |
Keyboard | |
Keyboard | full size, backlight |
Wireless | |
WIFi | Miracast optional |
Touch Pad | |
Touch Pad | Mouse track |
Battery | |
7.6V 6300MAH | 4pcs 3.7V 3150MAH cell, or 2PCS 3.7V 6300MAH Cell |
Spearker | |
Spearker | Built-in stereo speakers 8Ω |
Mic | |
Mic | Built in |
I/0 | |
DC *1 | DC In, 12V/3A |
HDMI*1 | HDMI IN |
USB C*1 | 5V/3A Power& Data &Video and Audio input for mobile phone/stick pc/mini pc/development board |
USB2.0 A*1 | Data transfer, Maximum power output up to 5V/500mAh |
Audio Jack*1 | 3.5mm stereo mini jack |
Micro SD Cardreader*1 | Support up to 256GB |
Device supporting | |
Samsung S8/S8+/s9/S9+and above | Supporting DEX desktop function |
Huawei MATE10/Mate20/P20& above | Supporting desktop function |
MACBOOK | Supporting all models with Type C |
Supporting all devices with USb3.1 type C port or HDMI port (NOTEBOOK,TABLET, MINI PC,MOBILE PHONE, ALL IN ONE, DEVELOPMENT BOARD) | |
Power Spec | |
Power Adapter | PD61W |
Phisical Spec | |
Dimension | 332*215.4*14.9mm |
Weight | 1.5KG |
Material | Aluminium Alloy |
Color | Black,Gary,Siliver,Gold |
Working Tempeturate | 0-40°C |
Storage Tempeturate | ~(-20)~70°C |
Package | |
Package | 1*V10B, 1* Gift Box, 1*power adapter with cable, 1*USB C 3.1 cable |
Remark: If customer want change to PD charger, we can modify case and modify PCBA. Remark: Wireless dex optional, Miracast optional |
