C2C
CPU/GPU J4125
CPU Frequency 2.00 GHz
Turbo Frequency 2.42GHz
Core Quad Core
GPU IIntel® HD Graphics for Intel Atom® Processor Z3700 Series 688 MHz~854 MHz
CPU Frequency 2.00 GHz
Turbo Frequency 2.42GHz
Core Quad Core
GPU IIntel® HD Graphics for Intel Atom® Processor Z3700 Series 688 MHz~854 MHz
| Meegopad-Windows Mini PC/MEEGOPAD C2C | |
| Contact: Elaine Email:elaine@meegopad.cn Mobile:0086-15889685436 skype: lichen0000lichen1 | |
| Specification | www.meegopad.cn |
| General | |
| Style | Industrial Mini PC |
| OS | Windows7/8/10/11/linux |
| CPU/GPU | |
| CPU/GPU | J4125 |
| CPU Frequency | 2.00 GHz |
| Turbo Frequency | 2.42GHz |
| Core | Quad Core |
| GPU | IIntel® HD Graphics for Intel Atom® Processor Z3700 Series 688 MHz~854 MHz |
| Storage | |
| Ram | DDR3L 2G/4G/8G |
| Storage | MSATA SSD & SATA HDD |
| Expand Storage | |
| Network Communication | |
| WiFi | Optional |
| Lan | Intel WG82583 Gigabit 2.0GHZ,Support network wake |
| Bluetooth | Support BT moudle |
| Sim Card | with sim card,Support 3G/4G mini pcie slot |

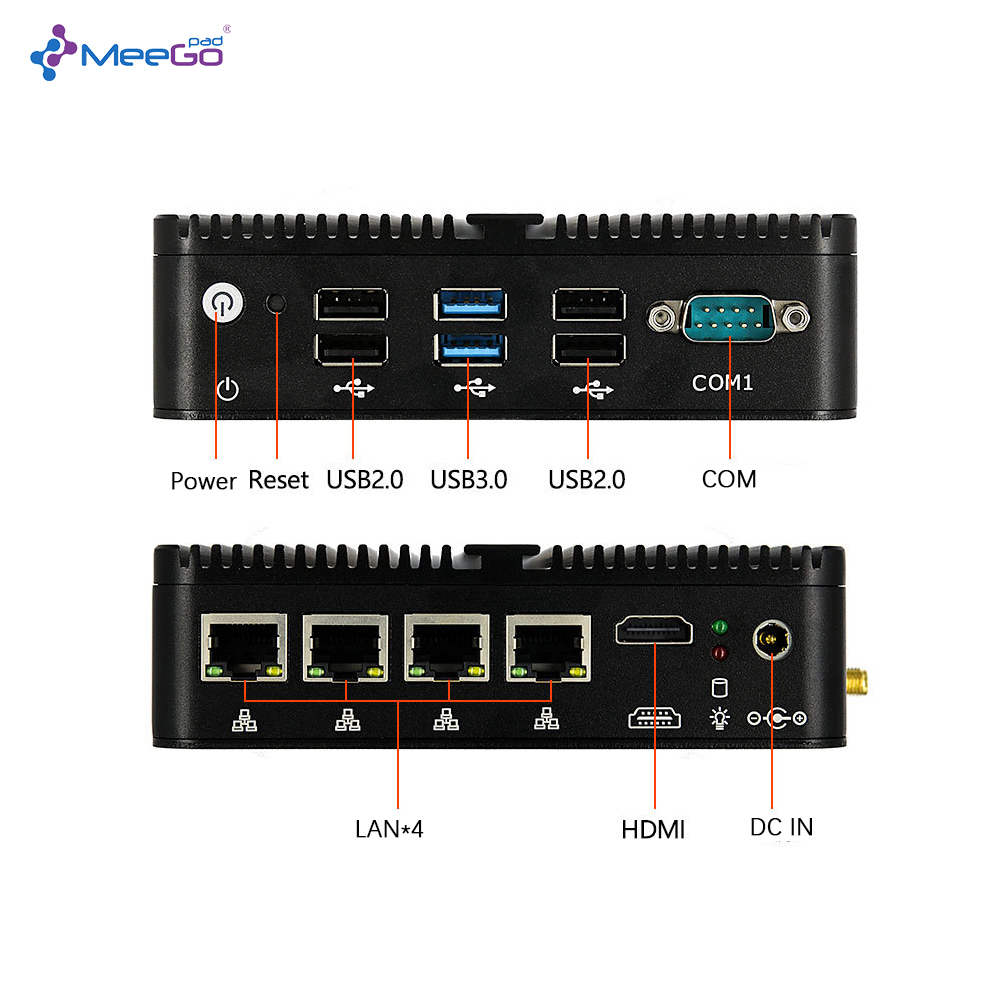

| I/O Ports | |
| RJ45 | Intel I211 Lan port*4 |
| COM | DB9COM*1 |
| HDMI | HDMI*1 |
| DC | DC port*1 12V |
| USB | 4*USB2.0, 2*USB3.0 |
| LED | Power LED*1, HDD LED*1 |
| Atenna port | dual, for wifi/3G/4G |
| Feature Key | Power On/Off |
| Power Adapter | |
| Power Adapter | Input 100V-240V 50/60Hz Output 12V 3A |
| Other Function | |
| Auto Boot | Support |
| Wake On Lan | Support |
| Diskless Boot | Support |
| Resume by Alarm | Support |

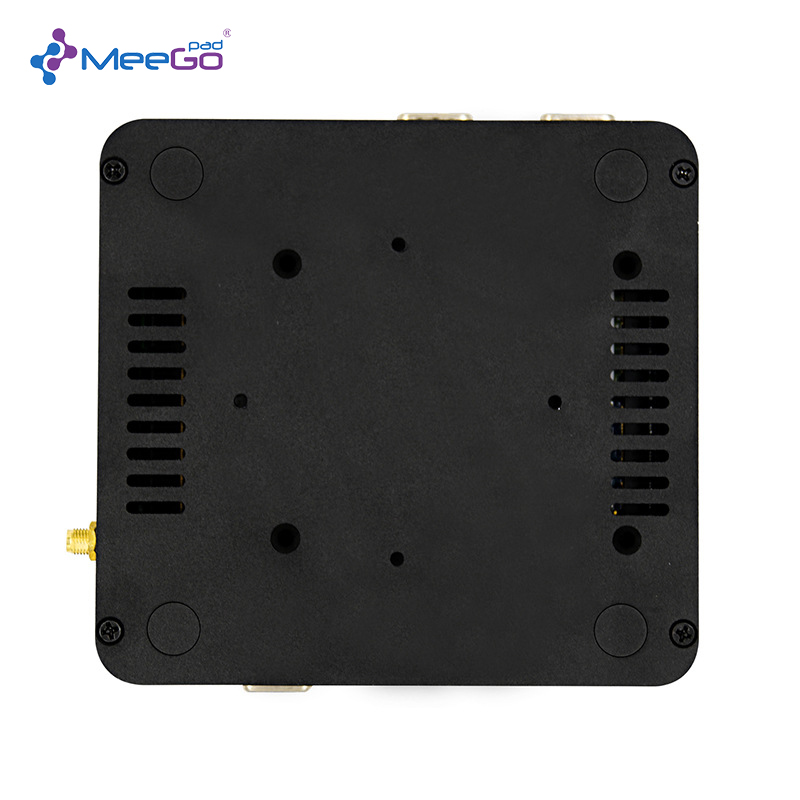

| Install Way | By vesa or desk |
| Physical Characteristics | |
| Working Tempeturate | (-10)℃~60℃ (SSD/mSata), 0-50℃ (HDD) |
| Sotrage Tempeturate | (-40)℃~85℃ |
| Relative Hnmidity | 0%~95%@40℃ Non-Condensing |
| Remark: Metal Housing, Suitable size for cooling | |

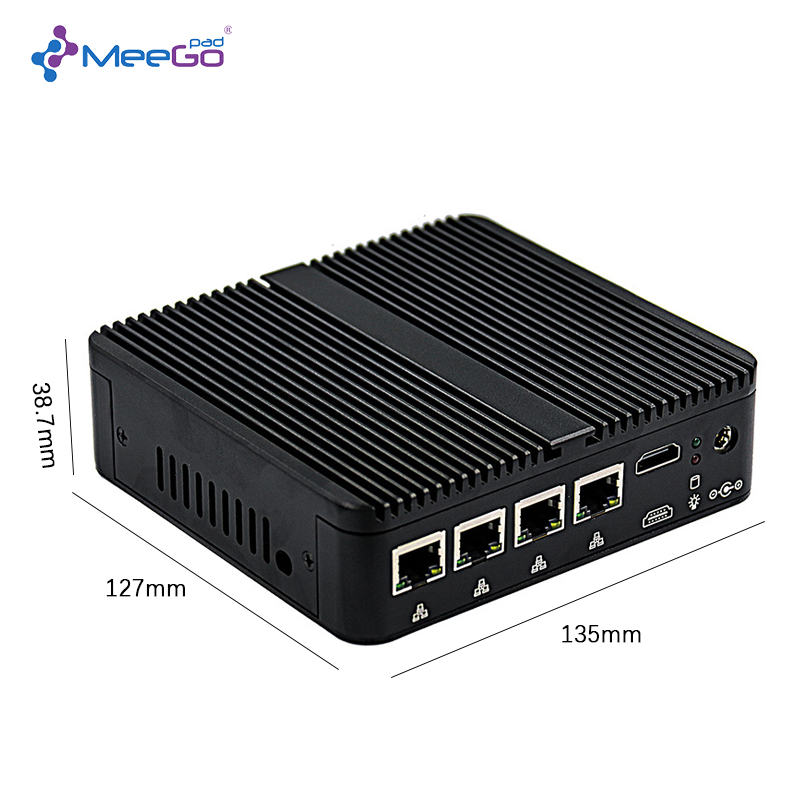

| Size | 135*127*38.7MM |
