C6E

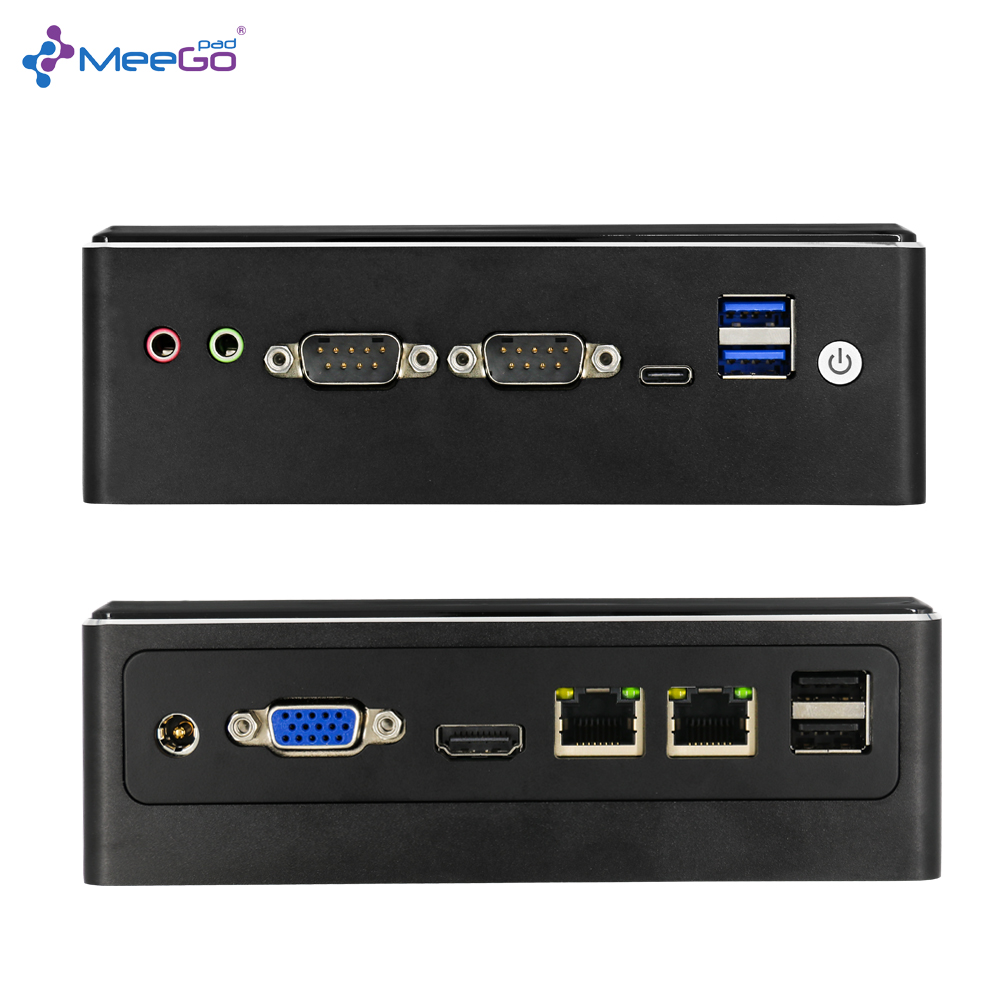

Meegopad-Mini PC C6E
| Meegopad-Mini PC/MEEGOPAD C6E | |
| Contact: Elaine Email:elaine@meegopad.cn Mobile:0086-15889685436 skype: lichen0000lichen1 | |
| Specification | www.meegopad.cn |
| General | |
| Style | 12.8*12.8cm MAINBOARD / CORE SERIES |
| OS | Windows7/Windows8/Windows10/win11/linux |
| CPU/GPU | |
| Chip | Intel Chip |
| I3 8005U:Broadwell/CPU Clock Speed 2.0G,Turbo Boost(NO)/HD Graphics 5500/Support DDR3L | |
| I5 8250U:Broadwell/CPU Clock Speed 2.20G,Turbo Boost 2.70G/HD Graphics 5500/Support DDR3L | |
| I7 8350U:Broadwell/CPU Clock Speed 1.60G,Turbo Boost 2.70G/HD Graphics 6000/Support DDR3L | |
| CPU | i3 5005U:Broadwell/CPU Clock Speed 2.0G,Turbo Boost(NO)/HD Graphics 5500/Support DDR3L |
| i5 5200U:Broadwell/CPU Clock Speed 2.20G,Turbo Boost 2.70G/HD Graphics 5500/Support DDR3L | |
| i5 5250U:Broadwell/CPU Clock Speed 1.60G,Turbo Boost 2.70G/HD Graphics 6000/Support DDR3L | |
| i7 5500U:Broadwell/CPU Clock Speed 2.40G,Turbo Boost 3.00G/HD Graphics 5500/Support DDR3L | |
| MACHINE with WIFI+VESA+POWER ADAPTER+HDD CABLE+PACKING | |
| i3 6100U:Skylake/CPU Clock Speed 2.30G,Turbo Boost(NO)/HD Graphics 520/SupportDDR4L | |
| i5 6200U:Skylake/CPU Clock Speed 2.30G,Turbo Boost 2.8G/HD Graphics 520/Support DDR4L | |
| i7 6500U:Skylake/CPU Clock Speed 2.50G,Turbo Boost 3.10G/HD Graphics 520/Support DDR4L | |
| MACHINE with WIFI+VESA+POWER ADAPTER+HDD CABLE+PACKING | |
| i3 7100U:Kabylake/CPU Clock Speed 2.40G,Turbo Boost（NO），HD Graphics 620/Support DDR4L | |
| i5 7200U:Kabylake/CPU Clock Speed 2.50G,Turbo Boost 3.10G，HD Graphics 620/Support DDR4L | |
| i7 7500U:Kabylake/CPU Clock Speed 2.70G,Turbo Boost 3.50G，HD Graphics 620/Support DDR4L | |
| Graphics Card | Intel Core Graphics Card |
| Audio | ALC662 |
| Storage | |
| Hard Disk | M.2 *1NGFF ; SATA *1 |
| Memory | DDR4 2133/2400/2666，Maximun Support 64GB (Dual Ram Slot) |
| Network Communication | |
| WiFi | Wifi Port *1;2.4G, 2.4G/5G WiFi optional |
| Wired LAN | Gigabit |

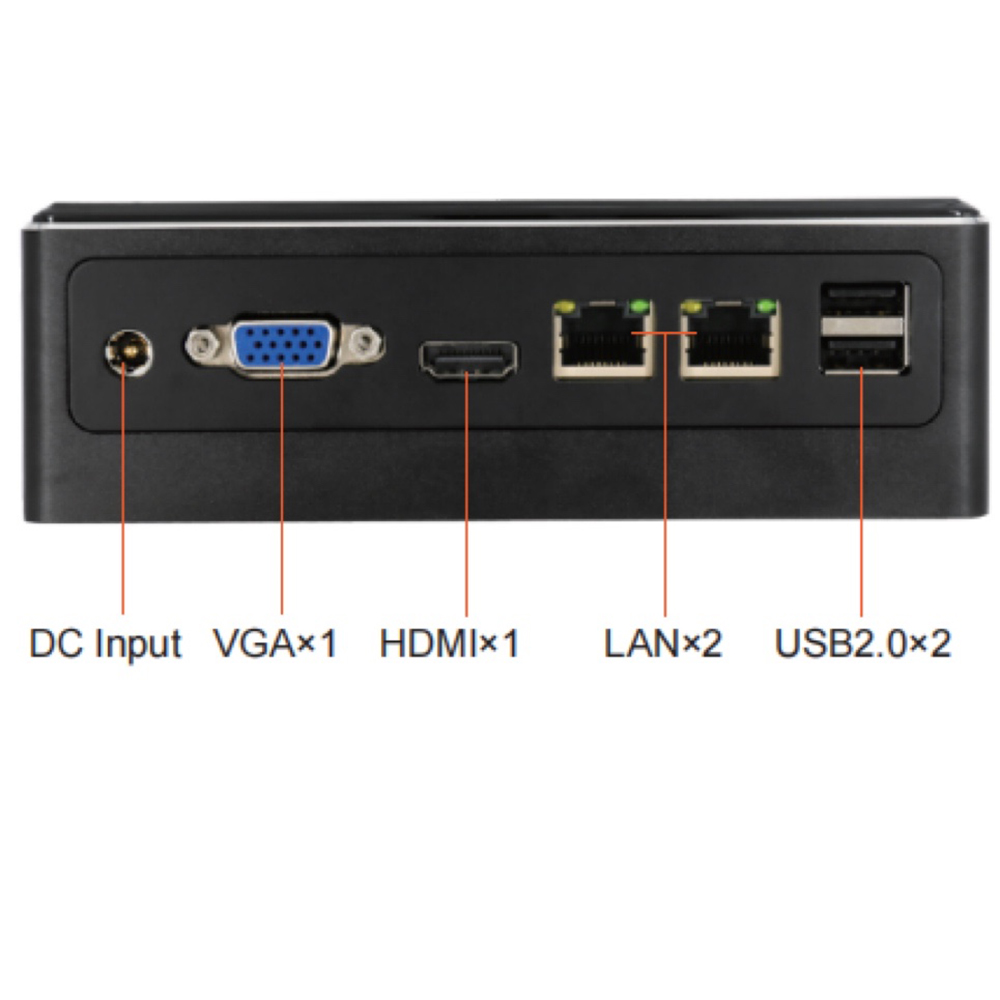

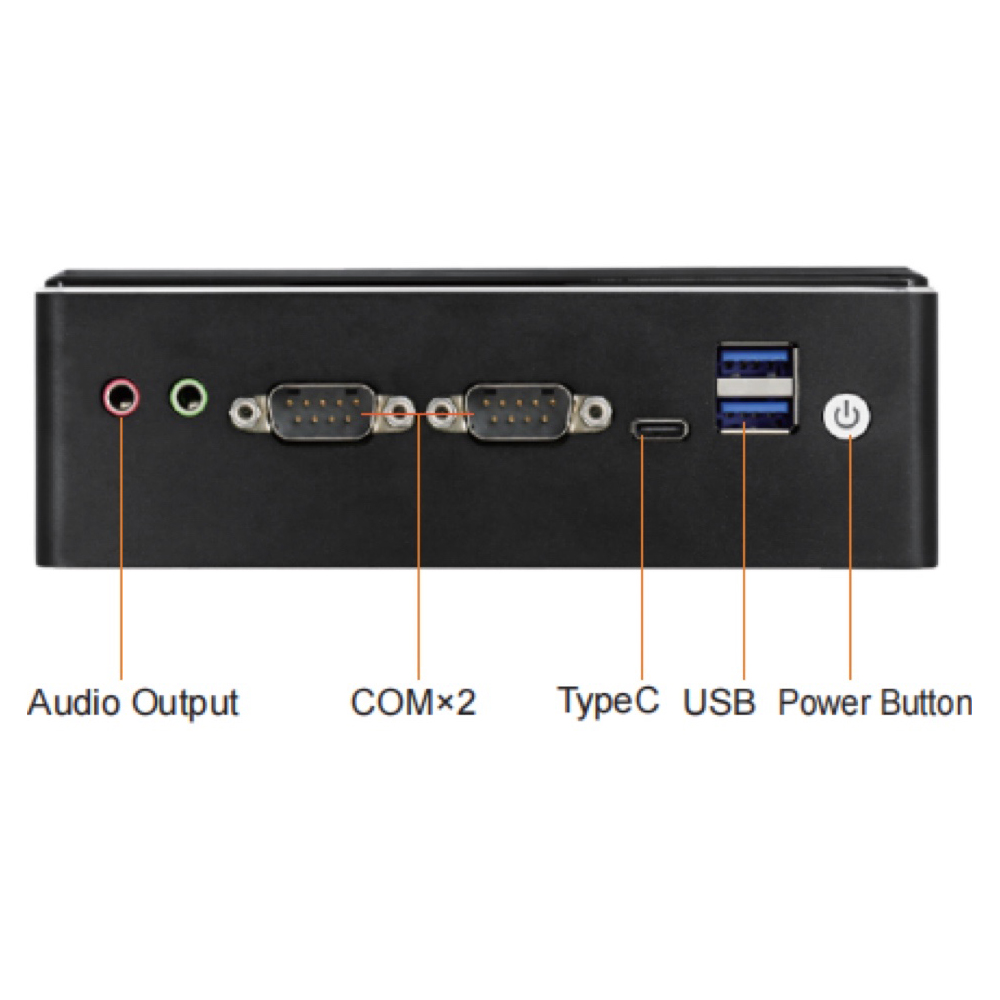

| I/O Ports | |
| HDMI | 2*HDMI port |
| Data | 4*USB2.0/ 4*USB3.0 |
| LAN | 2*LAN Port (Gigabit) |
| Audio | 1*AUDIO; 1*MIC |
| Feature Key | PC Power On/Off，Power Indicator |
| Onboard Pins | |
| Onboard Pins | F_panel*1,F_USB*1,JPS_on*1, JCMOS*1,CPU fan slot*1 |
| Other function | |
| Auto Boot | Support |
| Wake On Lan | Support |
| Boot without hardisk | Support |
| Ontime boot/shutdown | Support |
| Power | |
| Power | 12V-5A |
| Fan | |
| Fan | Intelligent Small Fan |
| Physical Characteristics | |
| Dimension | 13.5*13*4cm |
| Weight | 1.5KG |
| Case | All Aluminium Frame; All Aluminium Case for Cooling |
| Color | Silver White/Black/Customized |
| PACKAGE include（MAINBOARD+CPU+MEMORY+HARD DISK+WIFI+POWER ADAPTER+PACKING） | |
