C6F
HDMI 1*HDMI Port
Data 4*USB2.0/ 4*USB3.0
LAN 2*LAN Port
VGA 1*VGA Port
Audio 1*AUDIO; 1*MIC
Option 2*COM Port (optional to USB)
Feature Key PC Power On/Off，Power Indicator
Data 4*USB2.0/ 4*USB3.0
LAN 2*LAN Port
VGA 1*VGA Port
Audio 1*AUDIO; 1*MIC
Option 2*COM Port (optional to USB)
Feature Key PC Power On/Off，Power Indicator

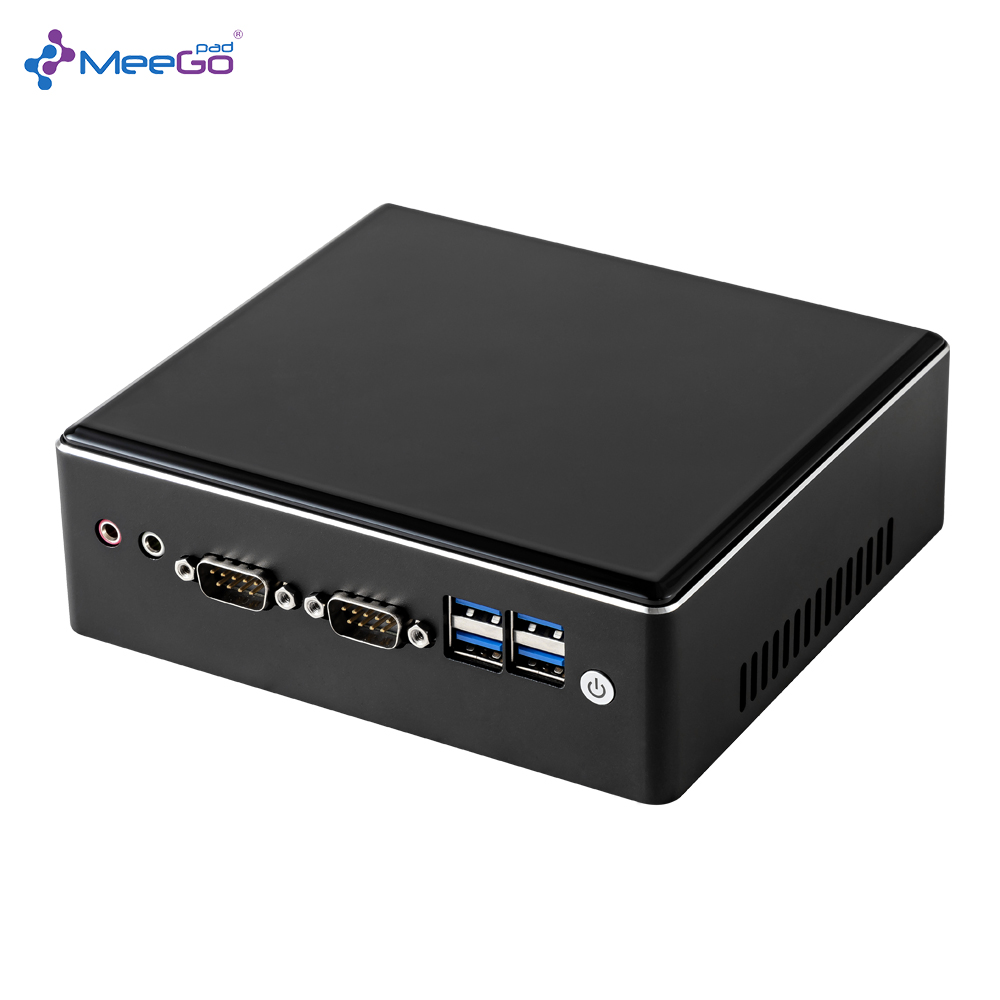

| Meegopad-Mini PC/MEEGOPAD C6-F | |
| Contact: Elaine Email:elaine@meegopad.cn Mobile:0086-15889685436 skype: lichen0000lichen1 | |
| Specification | www.meegopad.cn |
| General | |
  |
|
| Style | 12*12cm MAINBOARD / CORE SERIES |
| OS | Windows7/Windows8/Windows10/win11/linux |
| CPU/GPU | |
| Chip | Intel Chip |
| CPU | J4125/J4105/N5000 |
| I5 4200U/I7 4500U | |
| Graphics Card | Intel Core Graphics Card |
| Audio | Realtel ALC662 |
| Storage | |
| Hard Disk | MSATA3.0 *1 ; SATA *1 |
| Memory | DDR4L |
| Network Communication | |
| WiFi | Mini PCIE port |
| 3G/4G | Support 3G/4G mini PCIE slot, optional with WiFI |
| Wired LAN | Gigabit Lan REALTEK 8111H |
| I/O Ports | |
| HDMI | 1*HDMI Port |
| Data | 4*USB2.0/ 4*USB3.0 |
| LAN | 2*LAN Port |
| VGA | 1*VGA Port |
| Audio | 1*AUDIO; 1*MIC |
| Option | 2*COM Port (optional to USB) |
| Feature Key | PC Power On/Off，Power Indicator |
| Onboard Pins | |
| Onboard Pins | F_panel*1,F_USB*1,JPS_on*1, JCMOS*1,CPU fan slot*1 |
| Other function | |
| Auto Boot | Support |
| Wake On Lan | Support |
| Diskless Boot | Support |
| Resume by Alarm | Support |
| Power | |
| Power | 12V-3A |
| Fan | |
| Fan | Intelligent Small Fan |
| Physical Characteristics | |
| Dimension | 13.5*13*4cm |
| Weight | 650G |
| Case | All Aluminium Frame; All Aluminium Case for Cooling |
| Color | Silver White/Black/Customized |
| PACKAGE include（MAINBOARD+CPU+MEMORY+HARD DISK+WIFI+POWER ADAPTER+PACKING） | |
