C9
RJ45 LAN*2
HDMI HDMI*1
VGA VGA*1
Audio port/Microphone AUDIO*1 MIC*1
USB 6*USB2.0 ;2*USB3.0
COM COM*6
RS485 RS485*2
Feature Key Power On/Off
HDMI HDMI*1
VGA VGA*1
Audio port/Microphone AUDIO*1 MIC*1
USB 6*USB2.0 ;2*USB3.0
COM COM*6
RS485 RS485*2
Feature Key Power On/Off
| Meegopad-Windows Mini PC/MEEGOPAD C9 | |
| Specification | www.meegopad.cn |
| General | |
   |
|
| Style | Industrial Mini PC |
| OS | Windows7/8/10/11/linux |
| CPU/GPU | |
| CPU/GPU (MAINBOARD+CPU+CASE，NO WIFI) |
J1900:Bay trail,Celeron quad-core CPU Clock Speed 2.00G/HD 4000 Graphics Card,Support DDR3L |
| J1800:Bay trail,Celeron dual core CPU Clock Speed 2.41G/HD 4000 Graphics Card,Support DDR3L | |
| I5-6200U:Skylake | |
| I5-7200U:Kaby lake | |
| GPU | Intel Core Graphics Card |
| Audio | ALC962 |
| Storage | |
| Ram | DDR3L 2G/4G/8G |
| Storage | MSATA SSD & SATA HDD |
| Expand Storage | |
| Network Communication | |
| WiFi | 300Mbps Wireless LAN; |
| Lan | RTL8111 1000M |

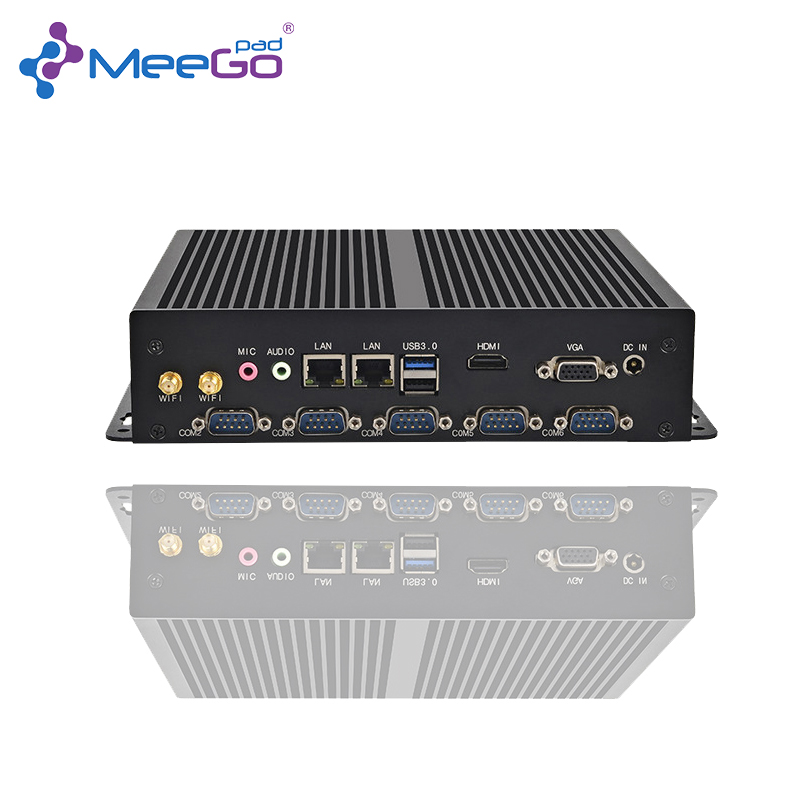

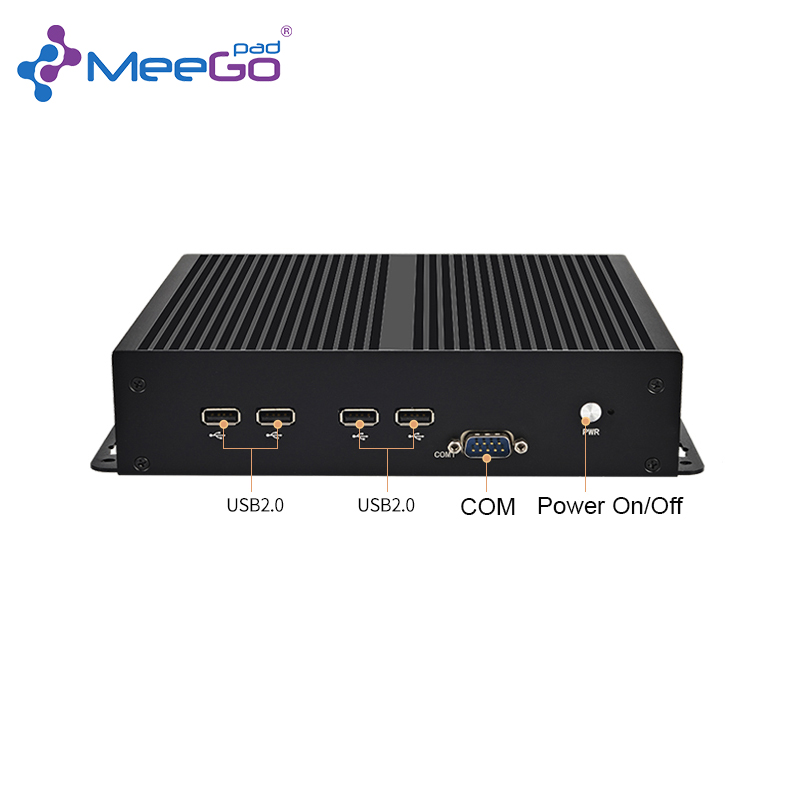

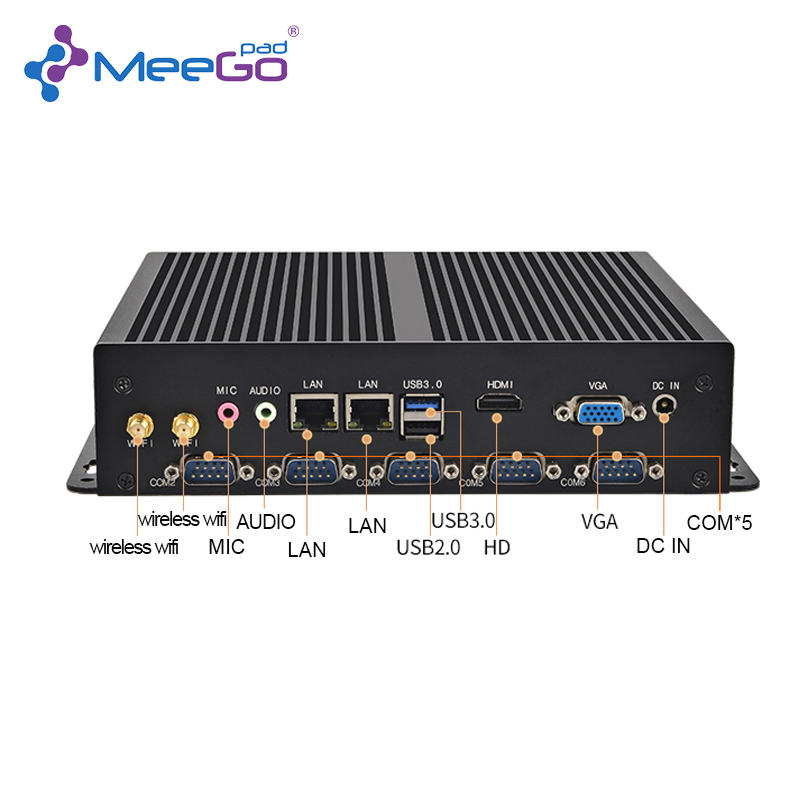

| I/O Ports | |
| RJ45 | LAN*2 |
| HDMI | HDMI*1 |
| VGA | VGA*1 |
| Audio port/Microphone | AUDIO*1 MIC*1 |
| USB | 6*USB2.0 ;2*USB3.0 |
| COM | COM*6 |
| RS485 | RS485*2 |
| Feature Key | Power On/Off |
| Power Adapter | |
| Power Adapter | Input 100V-240V 50/60Hz Output 12V 5A |

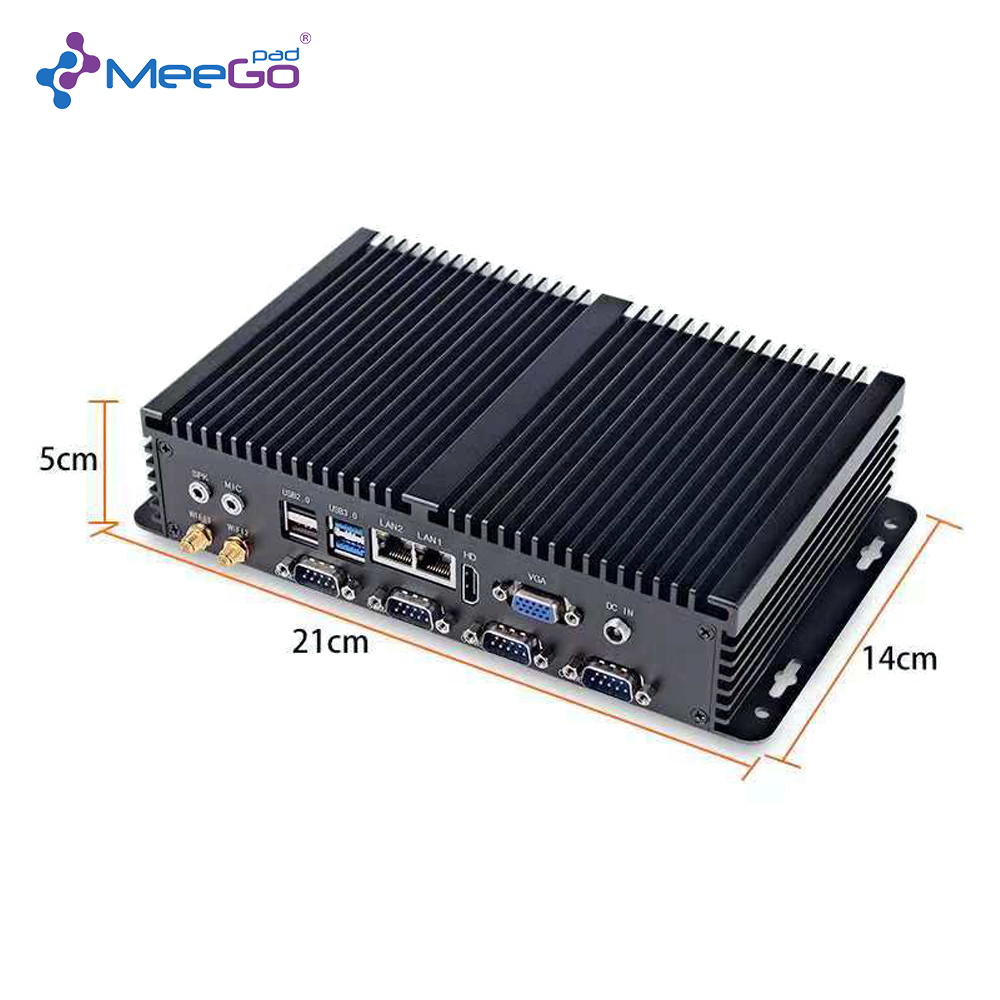

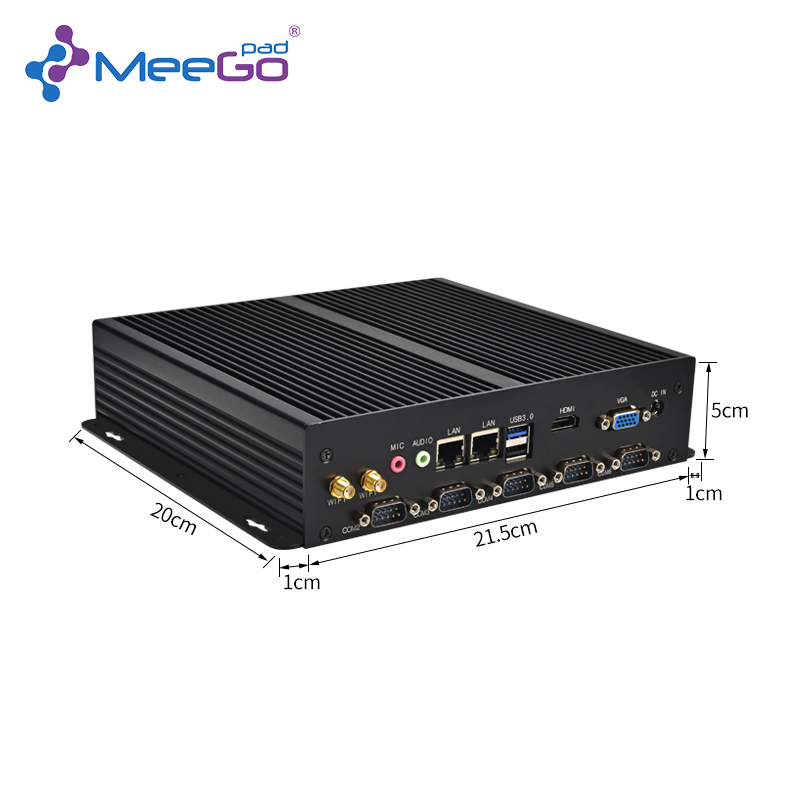

| Physical Characteristics | |
| Material | All Aluminium Frame; All Aluminium Case for Cooling |
| Weight | 2KG |
| Color | Silver White/ Black/Customized |
| Remark: Metal Housing, Suitable size for cooling | |
