J10P

Industrial Mini PC dual Lan dual Com Dual HDMI   Windows7/8/10/11/linux
联系我们 >>
下载
  • Meegopad-Windows Mini PC/MEEGOPAD J10P
    Specification www.meegopad.cn
    General

    Style Industrial Mini PC dual Lan dual Com Dual HDMI
    OS  Windows7/8/10/11/linux
    CPU/GPU
    CPU/GPU I3-1215U, I3 10110U
    I5-1235U, I5 10210U
    I7-1255U, I7 10510U
    I5 8250U
    GPU Intel Core Graphics Card
    Audio Yes
    Storage
    Ram DDR4 dual channel for 11th gen cpu max 32GB,                   DDR5 dual channel for 12th gen cpu max 64GB
    Storage M.2 NVME PCIE slot SSD+Sata HDD
    Expand Storage
    Network Communication
    WiFi Mini PCIE slot*1
    Lan 2 x Intel i2112 x Intel i255V
    3G/4G Mini PCIE slot (full card)*1

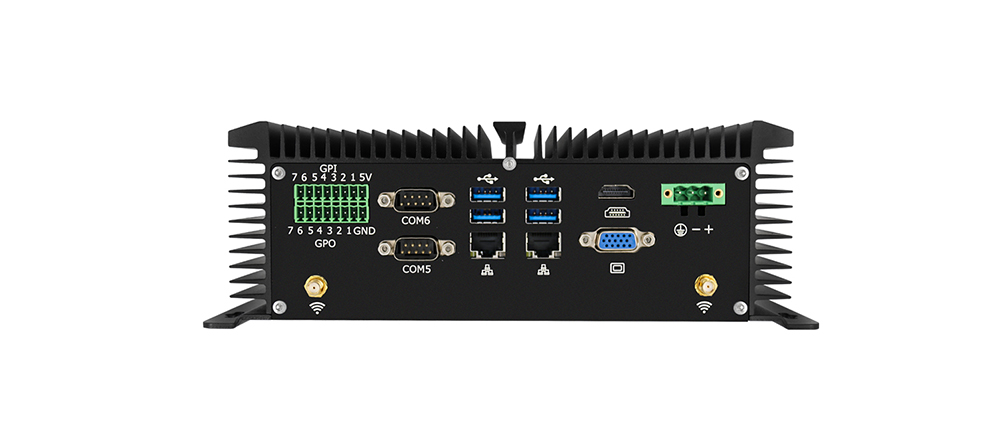

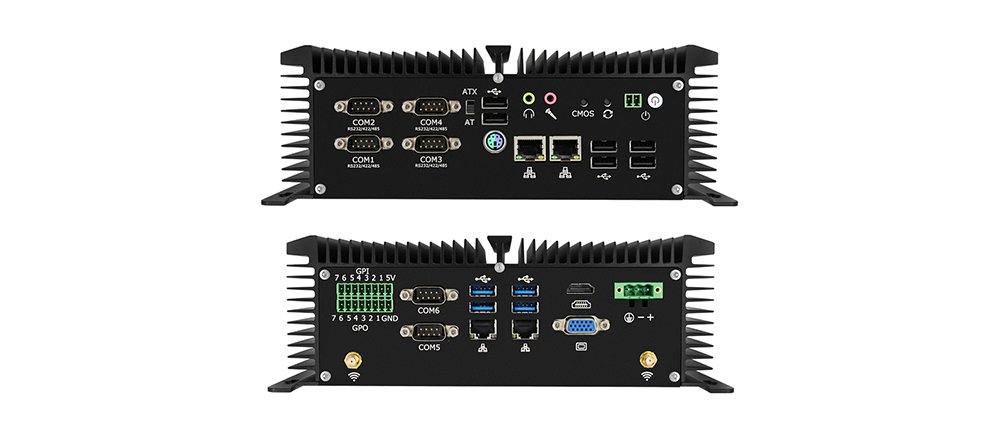

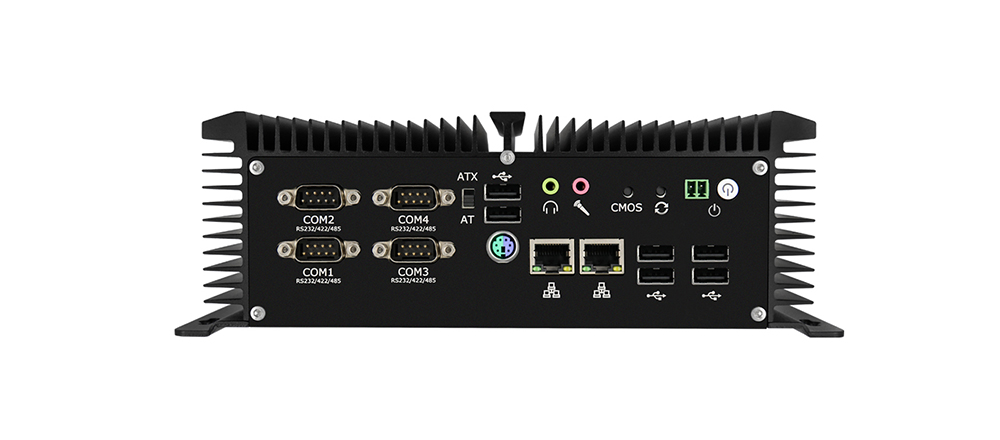

    I/O Ports
    RJ45 2 x Intel i2112 x Intel i255V
    HDMI HDMI*1+VGA*1 (HDMI*2 4K Optional)
    Audio port/Microphone AUDIO*1 MIC*1
    USB 4*USB3.0,  6*USB2.0
    COM 6COM, 4of then support RS485/RS422
    PS2 PS2*1
    Antenna Port Dual
    GPIO 7input 7output socket GPIO
    Phoenix Power socket  3pin phoenix power socket,support 9-36V power input
    ATX/AT power socket ATX/AT power socket*1


    Feature key 1 x Power Button, 1 x Reset Button1 x Clear CMOS Button
    Inside I/O
    F-panel FP*1
    Power on PWR ON*1 for auto boot

    Other function
    Auto Boot Support
    Wake On Lan Support
    Boot without hardisk Support
    Ontime boot/shutdown Support
    Power Adapter
    Power Adapter Input 100V-240V 50/60Hz Output 9~36V
    Physical Characteristics
    Material All Aluminium Frame; All Aluminium Case for Cooling
    Weight 1.3KG net weight
    Color Silver White/ Black/Customized
    Dimension 248 x 150 x 83 mm
    Remark:                                                                                                                                                         Metal Housing, Suitable size for cooling
    Packing: Single box:315*290*133mm
    Net weight 2.32kg, Gross weight 3.1kg                                                                                                           Carton size, 68.5*32.5*30.5CM 5pcs in one carton,Gross weigt16.5kg
