T10M
AIO MINI PC T10M mini PC Jasper Lake (Alder Lake-N N100/N200 ) Jasper lake 5100/5095/5105 Alder Lake-N N100/N200 ready in April
-
T10M mini PC Jasper Lake (Alder Lake-N N100/N200 ) ID

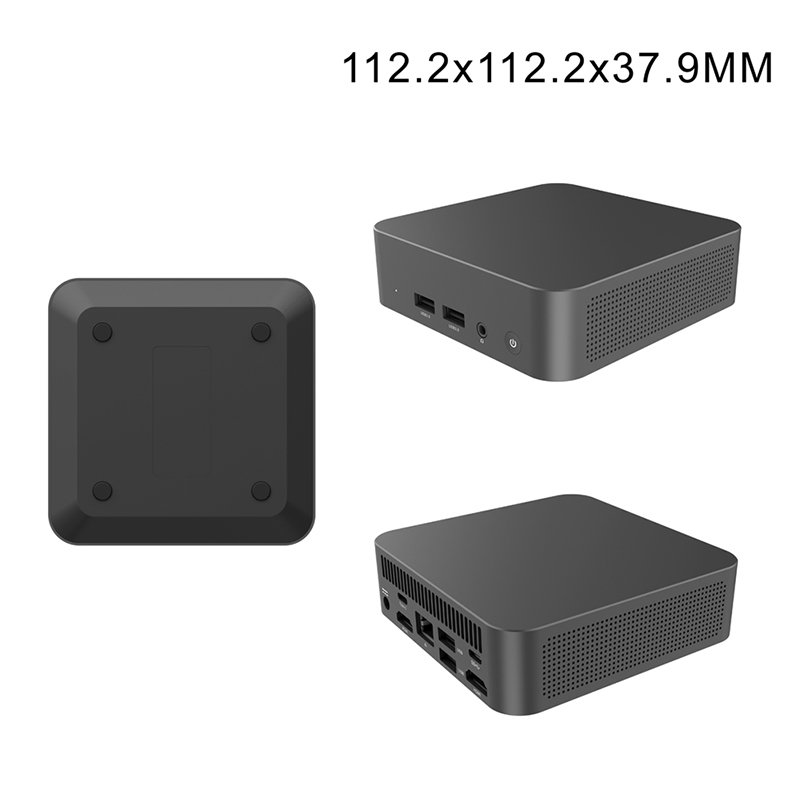

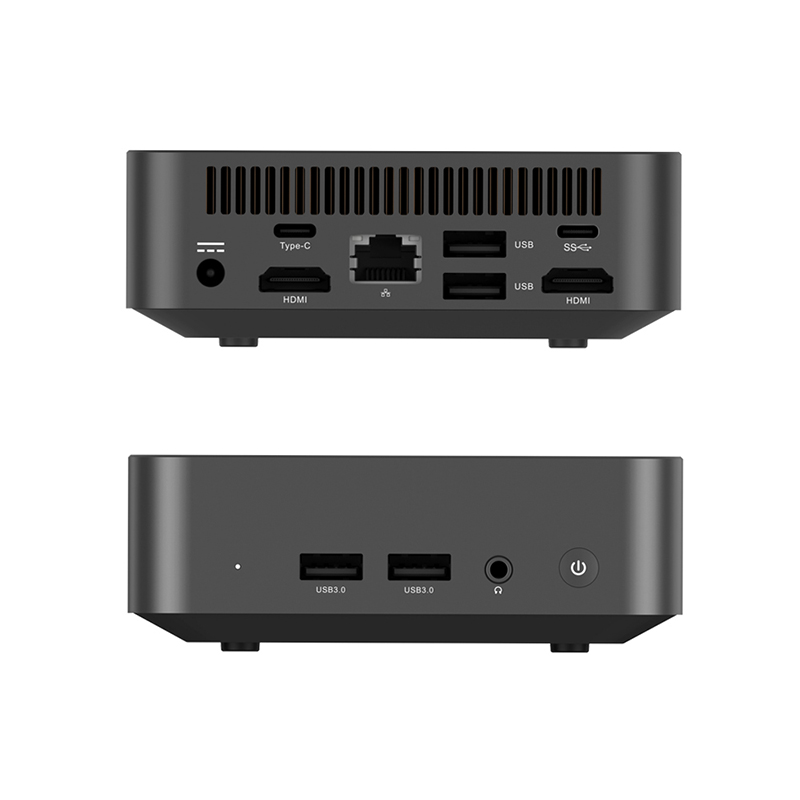

Product Appearance Type details Standard Configuration Product Product Type AIO MINI PC Dimension TBD Case Material Plastic/Metal Weight TBD System Hardware Configuration Type details Standard Configuration CPU type Jasper lake 5100/5095/5105 Alder Lake-N N100/N200 ready in April N5095 4 Cores, 4 Threads, Processor Base Frequency 2.00 GHz/ Burst Frequency 2.90 GHz/ TDP: 15W N5100 4 Cores, 4 Threads, Processor Base Frequency 1.10 GHz/ Burst Frequency 2.80 GHz/ TDP: 6W N5105 4 Cores, 4 Threads, Processor Base Frequency 2.00 GHz/ Burst Frequency 2.90 GHz/ TDP: 10W GPU type Intel® UHD Graphics RAM DDR4 8GB/16GB, SO-DIMM *2, DDR4, maximum supported speed 2933MHz SSD SSD M.2 NGFF SATA+PCIE (2242 *1+2280 *1) SPK built-in No speakers supported, built-in ALC269 VC/VB Codec. TPM built-in Reserved dTPM Network connections Type details Standard Configuration WIFI WIFI module M.2 WIFI or Onboard 6221C WIFI5, Bluetooth 4.2. Ethernet USB to Ethernet RTL8111H, supports 10/100/1000Mbps. Interface configuration Type details Describe USB Data transfer supportive USB 3.1 GEN1 *4 (front: 2x USB 3.1, back: 2x USB 2.0) Type-C Support Full-function Type-C *1 + DP/USB3.0 Type-C *1 Audio jack output 3.5mm, 4 Piece DC connector Power 5.5*2.5MM, 12V/3A HDMI Video output HDMI-A Type 1.4B *2 RJ45 Support 10/100/1000M (RTL8111H) Power button Support Power-on Indicator Light (White, Standby Breathing), The MB reserved RGB light interface. Standard accessories Type details Standard Configuration Power adapter Standard configuration 5.5*2.5MM, 12V/3A Software Configuration Type details Standard Configuration OS Operating system version Windows 11 Home Office N/A Other Certification N/A 112.2x112.2x37.9MM
