Meegopad-Windows MINI PC/MEEGOPAD T10
-
General
Style Ultra-mini PC——GAME BOX OS Windows10/Linux CPU/GPU CPU Intel® Apollo Lake N3450 14nm Quad Core

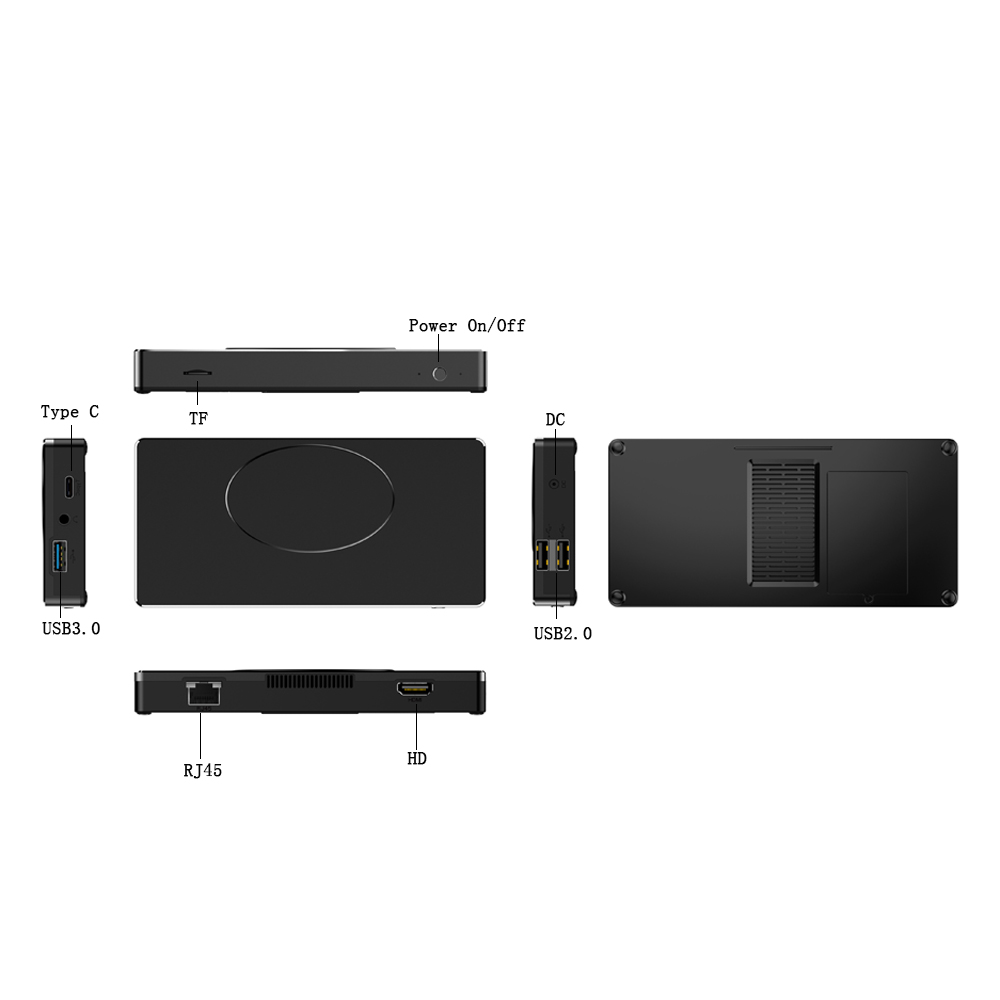

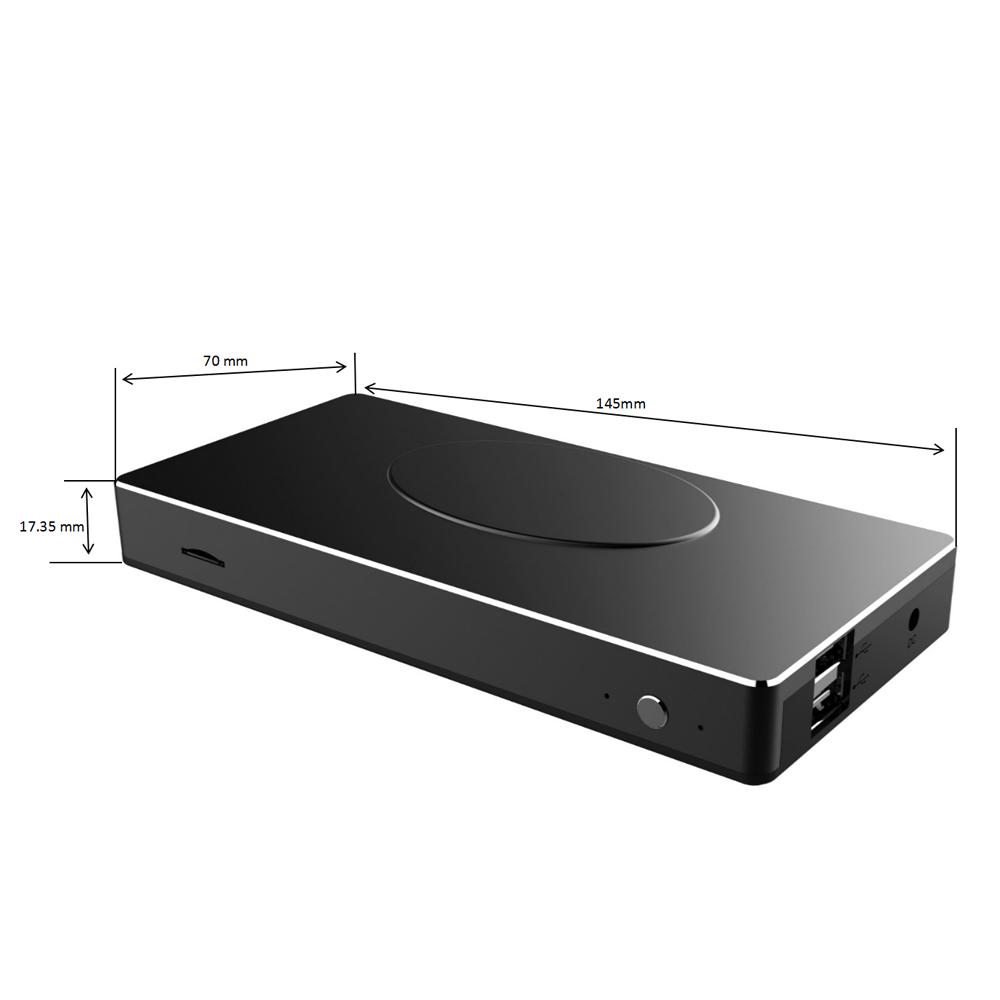

BGA 24mm x 31mm x 1.32mmCPU Frequency up to 2.2GHz Turbo Frequency Supports Intel® Burst Technology. Supports 2MB of L2 Cache Core Quad Coreᵌ (4C/4T) GPU Intel HD Graphic 500, 200MHZ-700MHZ Storage Ram LPDDR3 up to 1866 MT/s; 4G/8G Storage eMMC 32GB/64G Expand Storage SSD*1(optional) 128/256G Micro SD（TF）card, max 128G. Support external USB-Device Network Communication WiFi Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 MIMO and Bluetooth 4.0 Combo Module Bluetooth BT4.0 Combo Module I/O Ports DC-IN Jack x1 USB 2.0(Type A) x2 USB 3.0(Type A) x1 Type C x1 Giga LAN(RJ45) x1 HDMI1.4b (support 4K) x1 Audio Jack x1 Feature Key Power On/Off*1, Reset*1 Power Adapter Power Adapter AC 100~240V, 50/60Hz,12V/1.5A Physical Characteristics Dimension 140MM*70MM*17.5MM
