C10B

Mini PC/MEEGOPAD Windows7/8/10/11/linux If you want to know more about our product,please sent email to us.

Meegopad-Windows Mini PC/MEEGOPAD (C10B)
Specification	www.meegopad.cn
General

Style
OS	Windows7/8/10/11/linux
CPU/GPU
CPU/GPU	Intel®Kayby Lake I5 8250U/I7 8650U（I3 4010U/I5,I7 7GEN OPTIONAL)/ I5 10TH GEN/I7 10TH GEN/I3 10THGEN
CPU Frequency	1.60GHz/1.90GHz
Turbo Frequency	3.40Ghz/4.20Ghz
Core	Quad Core
GPU	Intel® HD Graphics Card
Storage
Ram	DDR4 2133/2400,dual Channel Max 32G
Storage	M.2 NGFF;SATA*1
Network Communication
WiFi	300Mbps Wireless LAN; Wifi Port*1;mini PCIE optional
Wired Lan	RTL8168E PCIE 1000M

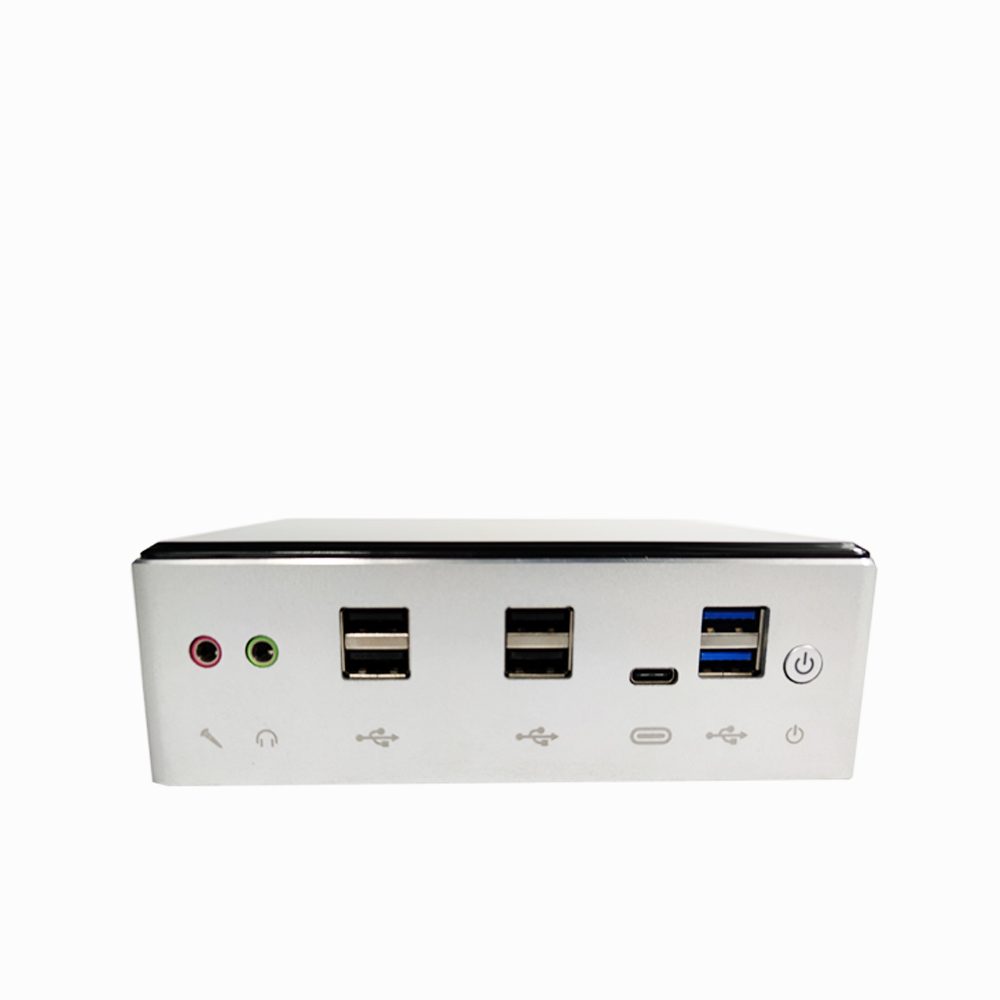

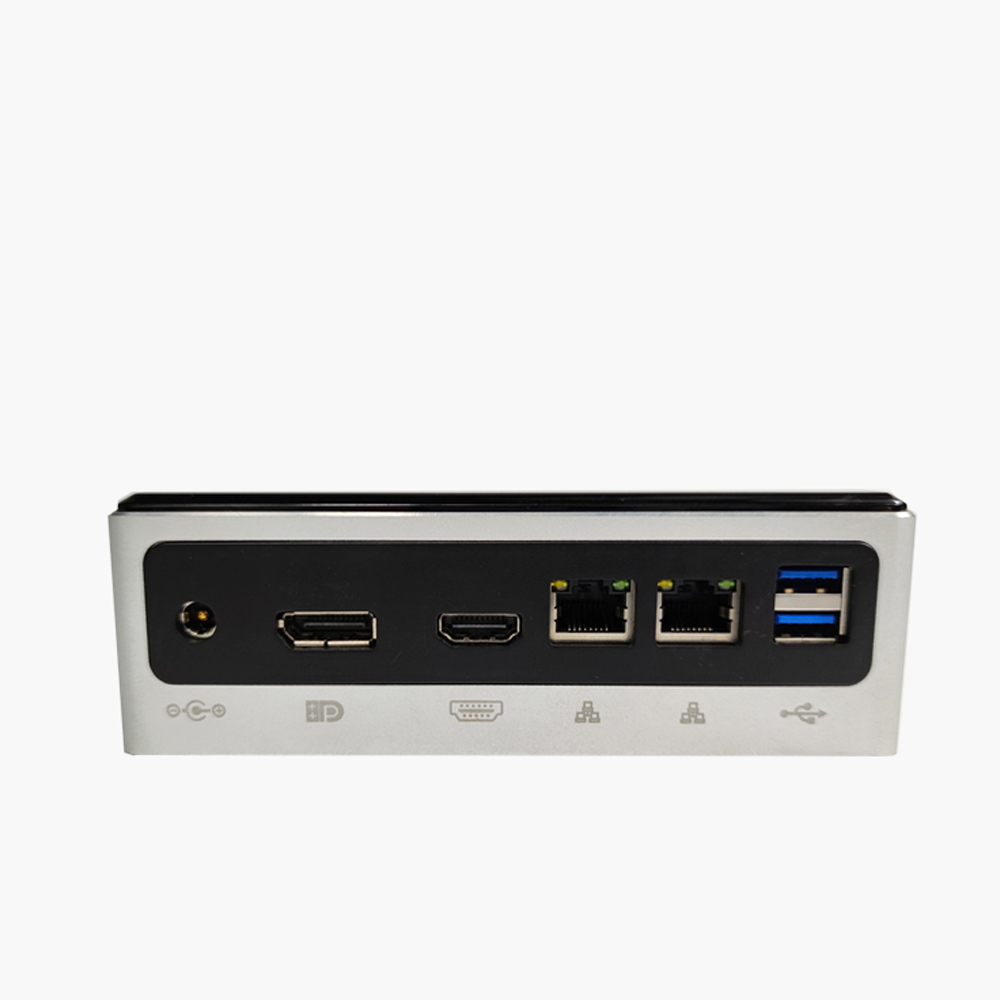

I/O Ports
HD	1*HD Port
Data	4USB 2.0/4USB 3.0
LAN	2*LAN Port Gigabit Lan
DP	1* DP port 4K
Audio	1*Mic & Audio 2 in 1
Type C	1*Type C port
Feature Key	PC Power On/Off, Power indicator
Other function
Auto Boot	Restore AC power loss support
Wake On Lan	Support
Boot without hardisk	RTC wake setting
Ontime boot/shutdown	Support PXE boot
Power Adapter
Power	19V 2.1A
Fan
Fan	Intelligent Small Fan
Physical Characteristics
Dimension	15013742.5mm
Weight	Gross Weight 1.5KG, Net Weight 0.75KG.
Case	ABS
Color	Black
