G10B

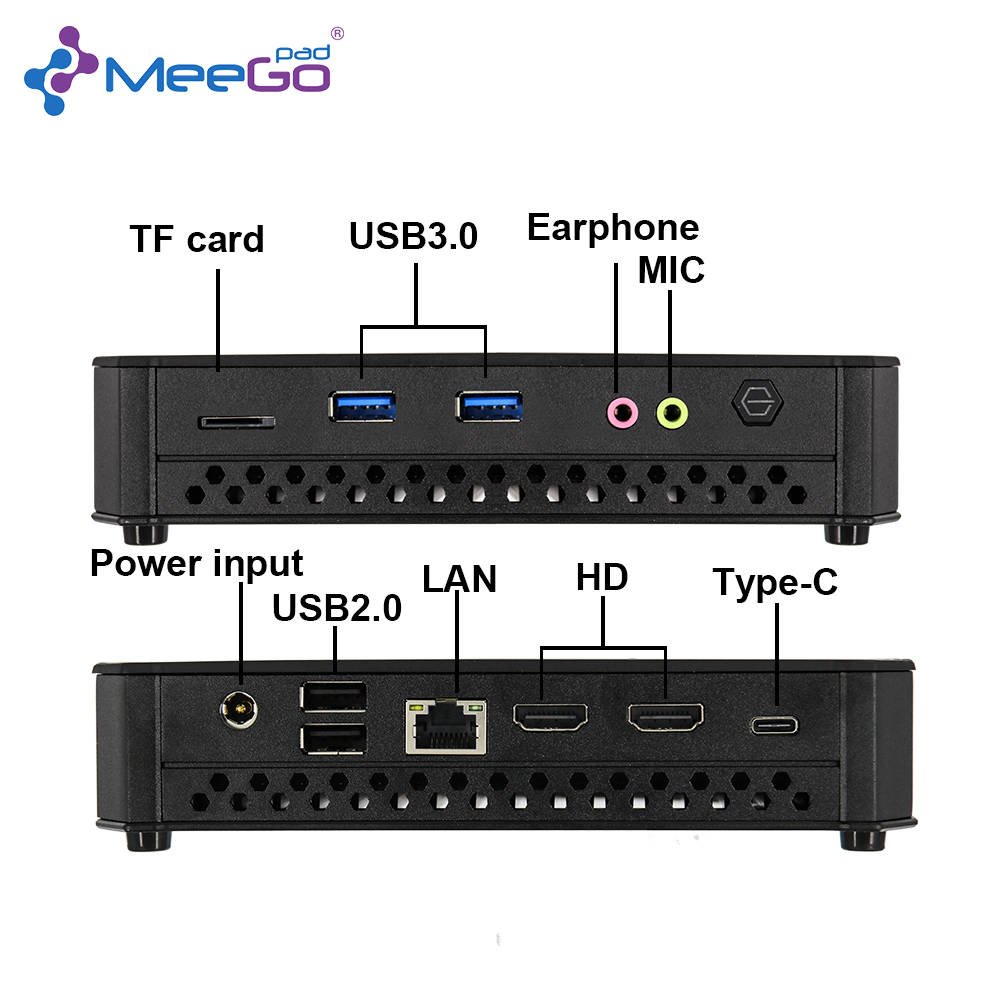

HD HDMI2.0*2
DP Mini DP*2 4K
LAN LAN Port Gigabit Lan*2
Audio Mic*1, Earphone*1
USB Port USB3.0*4, USB2.0*4
USB Type C Port Type C port (Gen1)*1
SD Card SD Card slot*1
Feature Key PC Power On/Off, Power indicator
DP Mini DP*2 4K
LAN LAN Port Gigabit Lan*2
Audio Mic*1, Earphone*1
USB Port USB3.0*4, USB2.0*4
USB Type C Port Type C port (Gen1)*1
SD Card SD Card slot*1
Feature Key PC Power On/Off, Power indicator
-
Meegopad-Windows Mini PC/MEEGOPAD G10B+A1:B43 Contact: Elaine Email:elaine@meegopad.cn Mobile:0086-15889685436 Specification www.meegopad.cn General
Style independent Graphics Gaming PC mini style OS Linux/Windows7/8/10/11 CPU/GPU CPU/GPU 14nm Intel® Core™ i5-8305G Processor with Radeon™ RX Vega M GL graphics. Basic Frequency 2.80GHz, Turbo Frequency3.80GHz,6 MB Cache Bus Speed 8 GT/s,65W Package TDP,4Core 8Threads. Integrated Discrete Graphics: AMD Radeon™ Pro WX Vega M GL Graphics, Base Frequency 931MHz, Max Dynamic Frequency 1011MHz.
Processor Graphics: Intel® HD Graphics 630,Base Frequency 931MHz, Max Dynamic Frequency 1011MHz.14nm 8th Generation Intel® Core™ i7 Processors I7-8705G Processor with Radeon™ RX Vega M GL graphics. Basic Frequency 3.1GHz, Trubo Frequency4.1GHz, 8MB Cache Bus Speed 8 GT/s,65W Package TDP,4Core 8Threads. Integrated Discrete Graphics: AMD Radeon™ RX Vega M GL Graphics, Base Frequency 931MHz, Max Dynamic Frequency 1011MHz.
Processor Graphics: Intel® HD Graphics 630,Base Frequency 350MHz, Max Dynamic Frequency 1.1GHz. Graphics Video Max Memory 64GBIntel 14nm I7-8709G 8th Generation Intel® Core™ i7 ProcessorsI7-8709G Processor with Radeon™ RX Vega M GH Graphics. Basic Frequency 3.1GHz, Trubo Frequency4.1GHz, 8MB Cache Bus Speed 8 GT/s,100W Package TDP,4Core 8Threads. Integrated Discrete Graphics: AMD Radeon™ RX Vega M GL Graphics, Base Frequency 1063MHz, Max Dynamic Frequency 1190MHz.

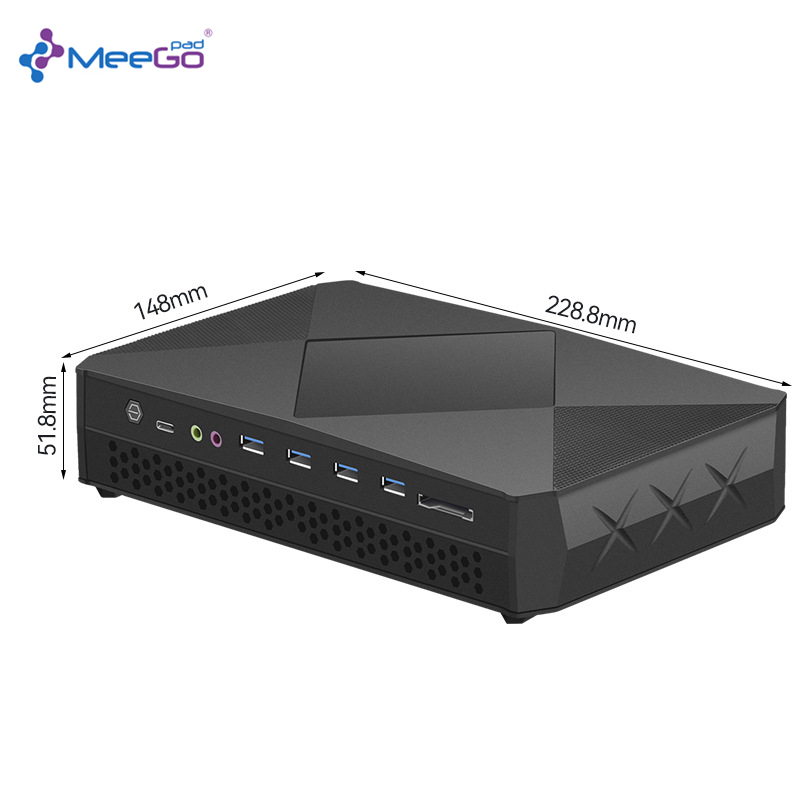

Processor Graphics: Intel® HD Graphics 630,Base Frequency 350MHz, Max Dynamic Frequency 1.1GHz. Graphics Video Max Memory 64GBIntel® Core™ i7-8809G Processor with Radeon™ RX Vega M GH graphics (8M Cache, up to 4.20 GHz) FC-BGA14F, Tray Storage Ram DDR4 2400 SODIMM*2,dual Channel Max 64G Storage 2*M.2 NVME, (SSD1 support M.2 sata and NVME) Network Communication WiFi M.2 WiFi slot*1 Wired Lan GbE RJ45 Intel i219*1, GbE RJ45 Realtek 8111*1 I/O Ports HD HDMI2.0*2 DP Mini DP*2 4K LAN LAN Port Gigabit Lan*2 Audio Mic*1, Earphone*1 USB Port USB3.0*4, USB2.0*4 USB Type C Port Type C port (Gen1)*1 SD Card SD Card slot*1 Feature Key PC Power On/Off, Power indicator Other Function Function Wake On Lan, Auto boot, Timing boot,Diskless Boot Power Adapter Power 19V 5A. Support 12V-19V power Fan Fan Dual Intelligent smart Fan Physical Characteristics Dimension 228.8 x 148 x 51.8 mm Weight 1.5KG Case Metal+ABS Color Black Working Environment Working Temperature (-20℃ to +60℃) Storage Temperature (-30℃ to +70℃) Storage Humidity 10%~90% @30℃ No condensation
